Cast Sprocket

A cast sprocket is a sprocket made by casting metal into a mold. The mold consists of an inner hub and an outer ring. The metal is poured into a mold to cool and solidify. Then separate the two parts of the mold and remove the sprocket.

When it comes to reliable power transmission in heavy-duty applications, cast sprockets are the solution of choice. Designed with precision and durability in mind, cast sprockets offer exceptional performance and longevity.

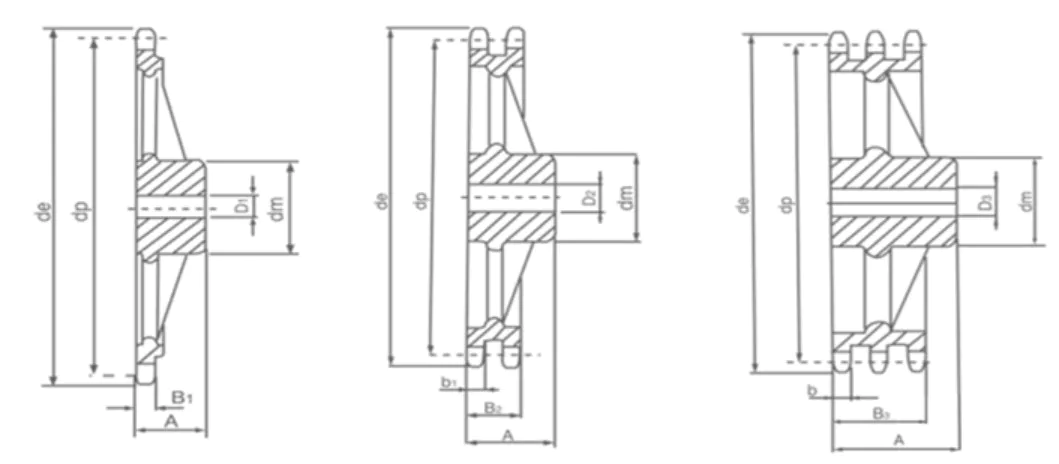

Cast Sprocket Parameter:

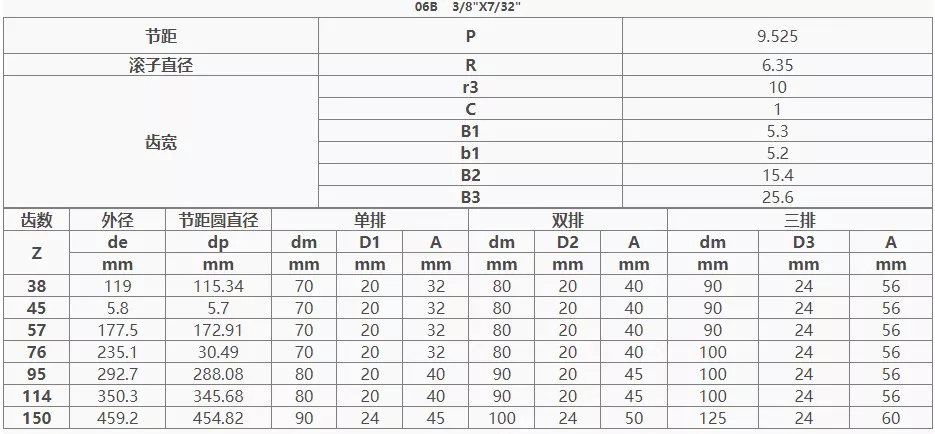

06B cast iron sprocket

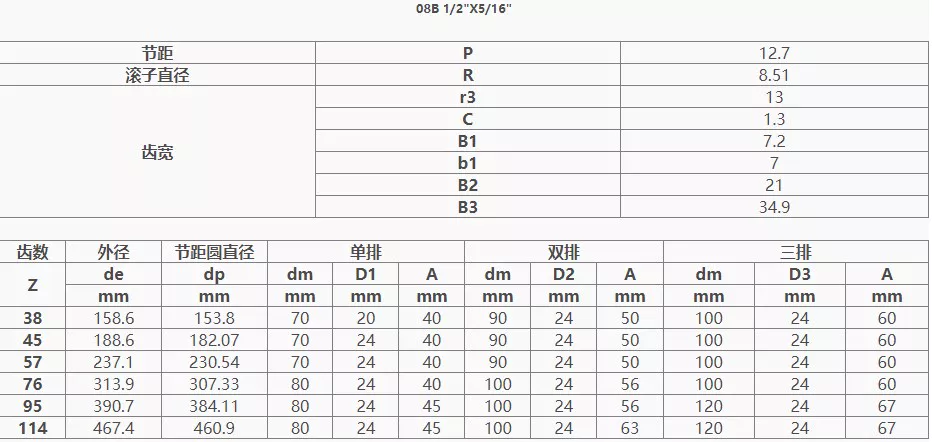

08B cast iron sprocket

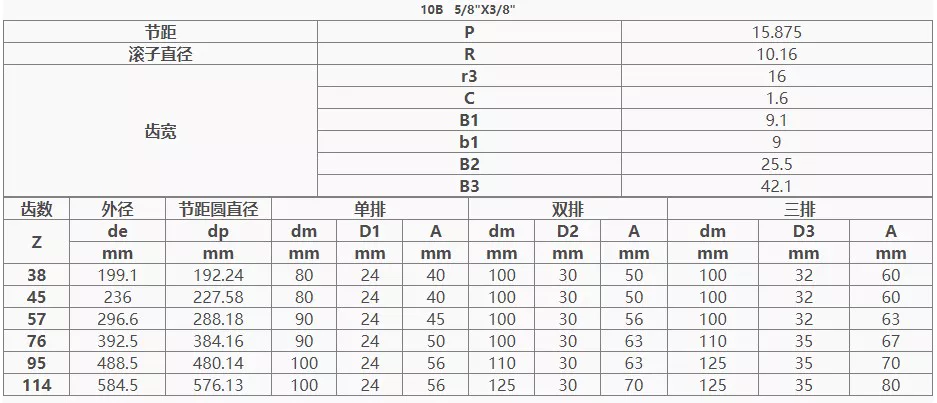

10B cast iron sprocket

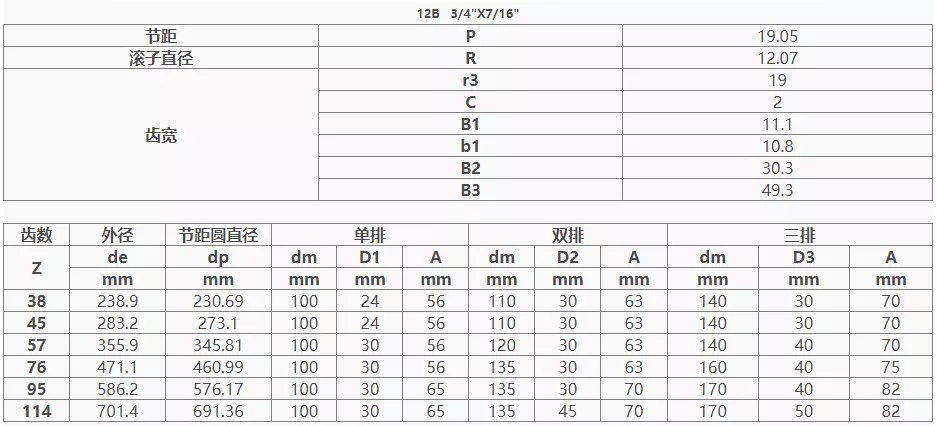

 12B cast iron sprocket

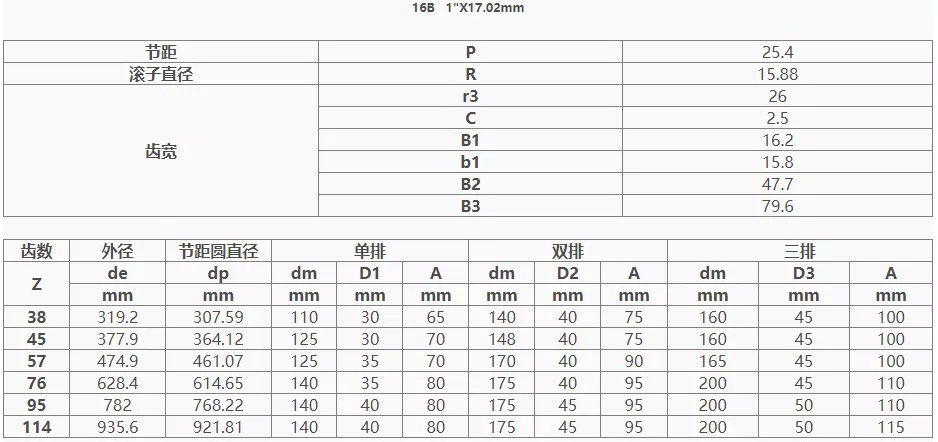

 16B cast iron sprocket

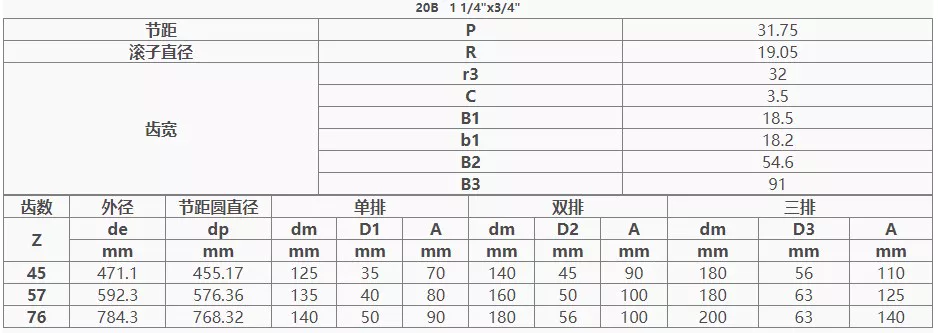

 20B cast iron sprocket

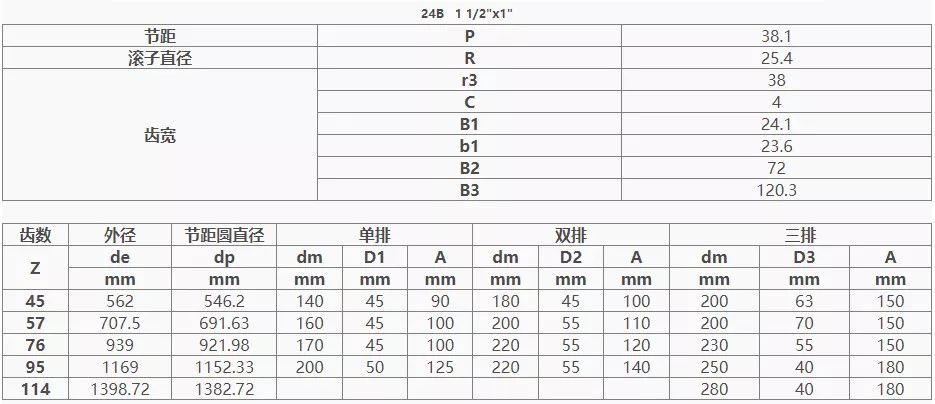

24B cast iron sprocket

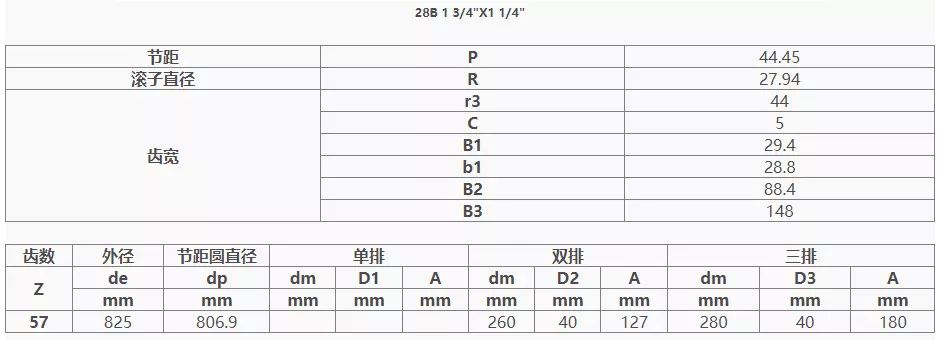

 28B cast iron sprocket

Cast Chain Usage Method:

In order to achieve the best performance and life, the correct use method should be followed when using the cast sprocket. Consider the following guidelines:

Choose the right size: Choose a cast sprocket that matches the pitch, number of teeth, and size requirements of the chain. This ensures precise bonding and efficient power transmission.

Correct alignment: Ensure that the sprocket is properly aligned with the chain to prevent misalignment and excessive wear. Proper alignment ensures smooth operation and minimizes the risk of premature failure.

Regular inspection: Check the sprocket teeth regularly for signs of wear, damage or deformation. Promptly replace any worn or damaged sprockets to maintain optimal performance and prevent potential chain slippage or breakage.
